How to import X,Y,Z coordinates csv file to Smart Construction Rover application

Issue

How to import X,Y,Z coordinates csv file to Smart Construction Rover application.

Answer

In order to import csv file to Smart Construction Rover application, you shall

1) save ( transfer ) your csv file into Smart Construction Rover Android tablet

2) follow procedure from Smart Construction Rover application ( detail in Explanation section below) and import csv file

*Important NOTE : Make sure csv file format is exactly the same as it requires which means no header and x y x columns . For more information on csv format you can refer to this FAQ link

Explanation

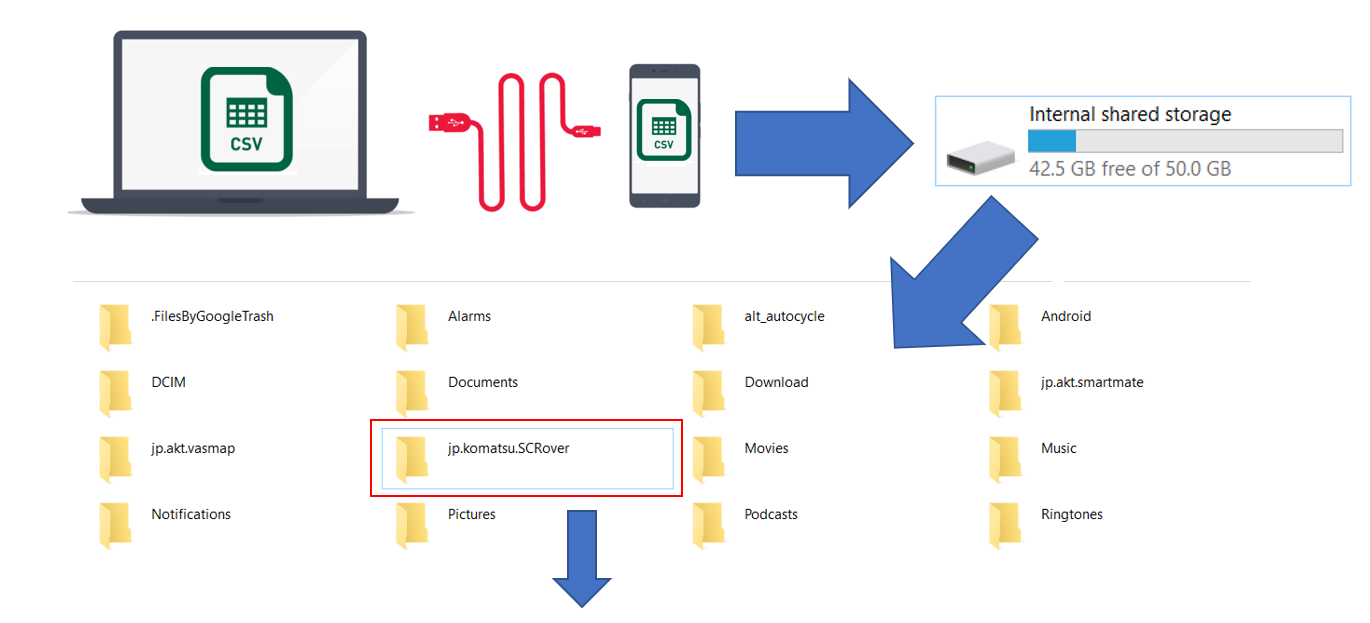

Step 1)

Save or transfer your csv file to Smart Construction Rover android tablet/device into below address :

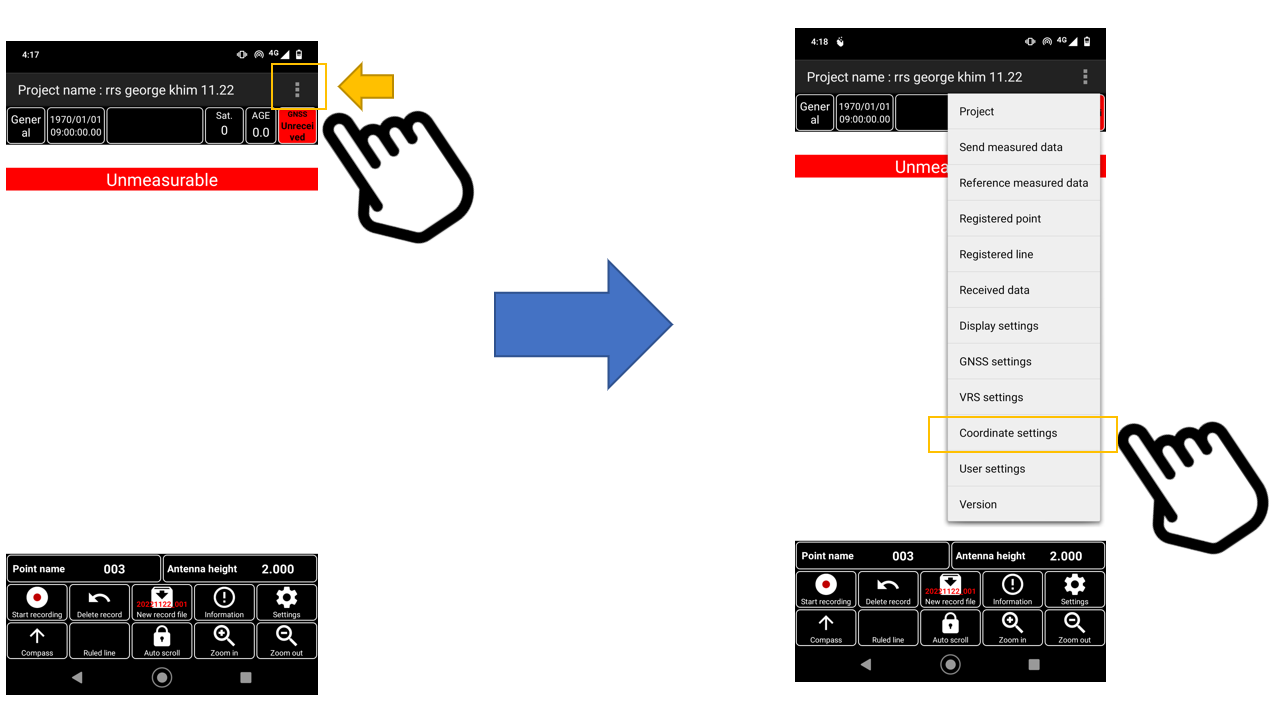

Step 2)

Open Smart Construction Rover application and from menu open coordinate Setting

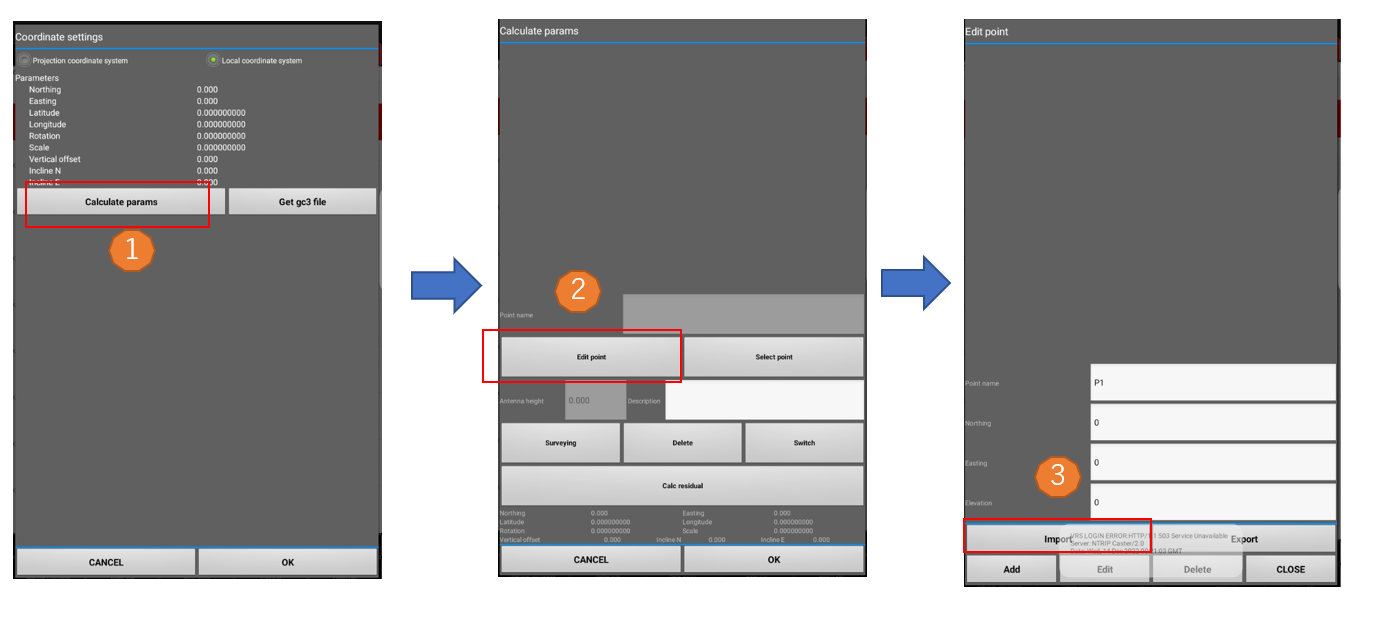

Step 3)

Follow 1-2-3 from below screen and import your csv file
