What is the content of "No Measurement"?

Issue

The Smart Construction Rover Android device is appearing the "No Measurement" display mode, and want to know what it is and how to deal with it.

Answer

The meaning of it is shown in the list below.

Explanation/How to deal

The meaning of the Smart Construction Rover "No Measurement" display and how to respond to it are as follows.

mode	meaning	How to deal
	GNSS correction information is not imported into the SmartMate application.	Please perform a restart on the Android device side.
	GNSS correction information not received.	Check your internet connection. Check if the ID is registered correctly in the VRS setting of SmartMate application. Check if RTCM In port is set to "TCP" in the RTFSetting. Refer to the attached below.
	Reception level of GNSS correction information is decreasing.	Move the Smart Construction Rover to a location with clear visibility above the ground.

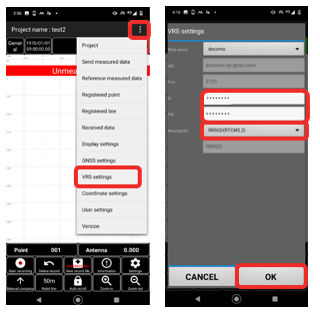

Register ID for VRS setting on "SmartMate" application in Android device.

After launching the application, follow the steps below.

• Select "VRS Settings" from the menu item.
• Check if the target ID is registered in the user settings.

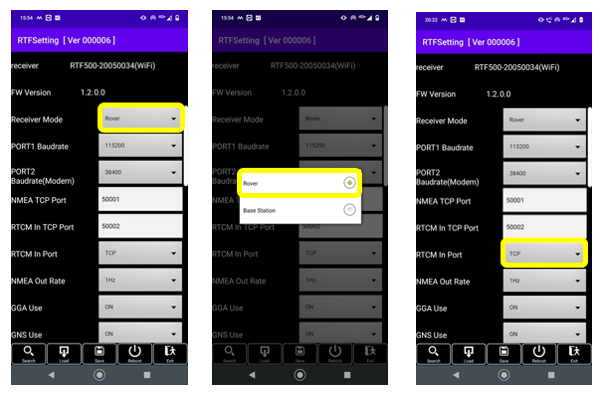

Set the "RTCM In Port setting" on "RTFSetting" application in the Android device.

After launching the application, follow the steps below

• Select "Rover" in Receiver Mode.
• Choose "TCP" for RTCM In Port.
