How to set up Smart Construction Rover as base station using Komatsu Ntrip Caster as correction data in RTF500

Issue

How to set up Smart Construction Rover as base station using Komatsu Ntrip Caster as correction data in RTF500

Answer

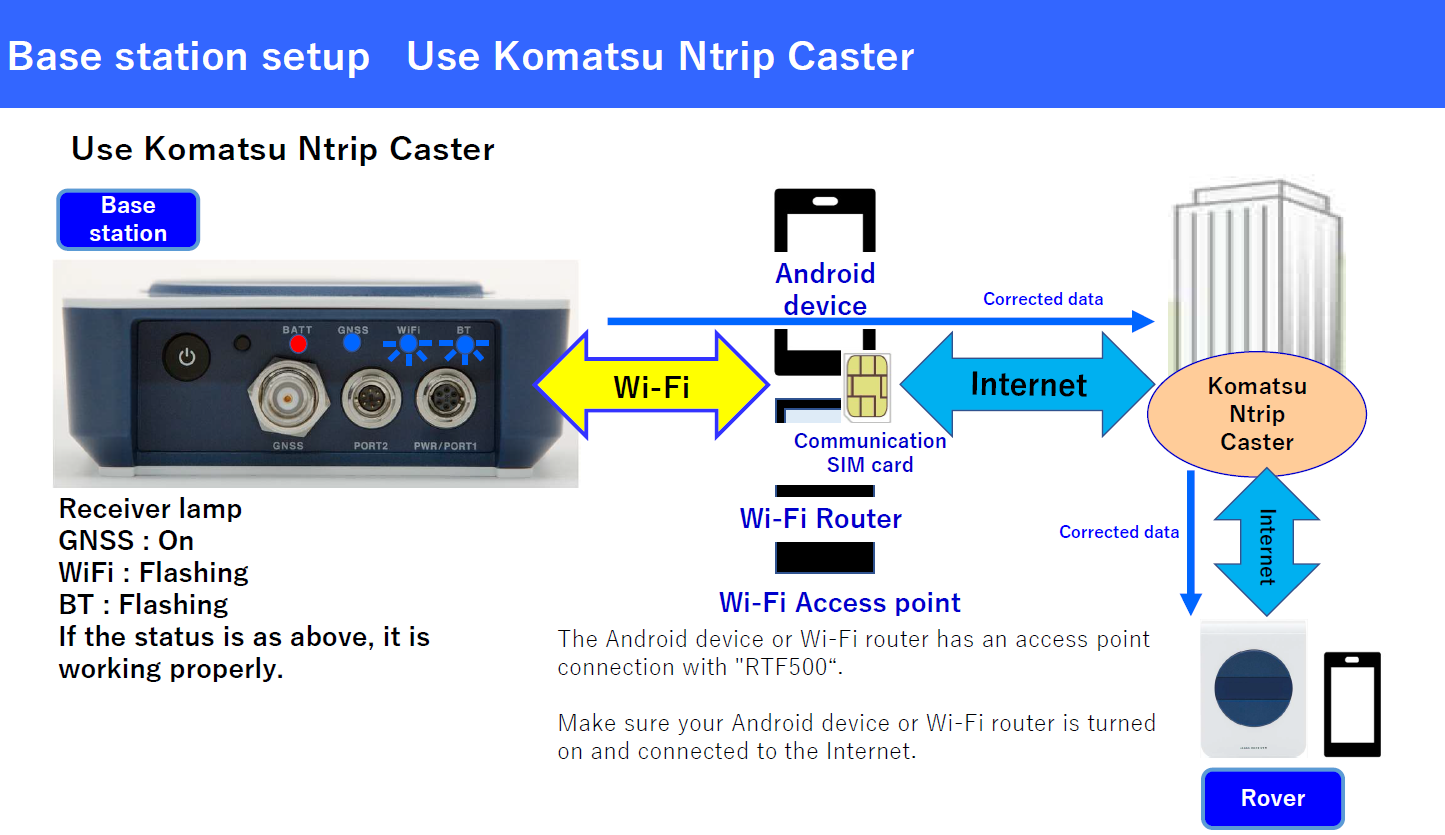

In order to set up Smart Construction Rover as base station using Komatsu Ntrip Caster as correction data , you need to have Wifi ( internet connection).

Please follow procedure in explanation section for set up.

Explanation

After successfully connecting Smart Construction Rover tablet and opening the RFTsetting application , follow below procedure :

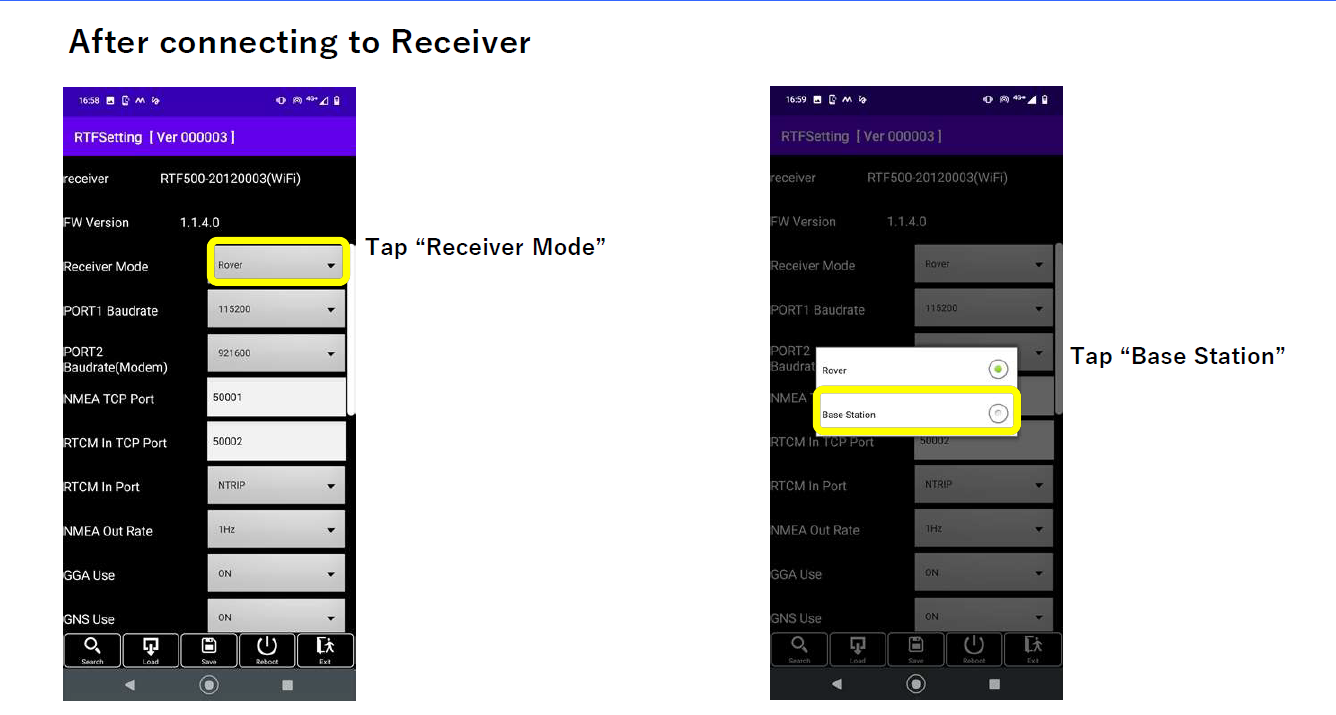

1) set Receiver Mode as Base Station

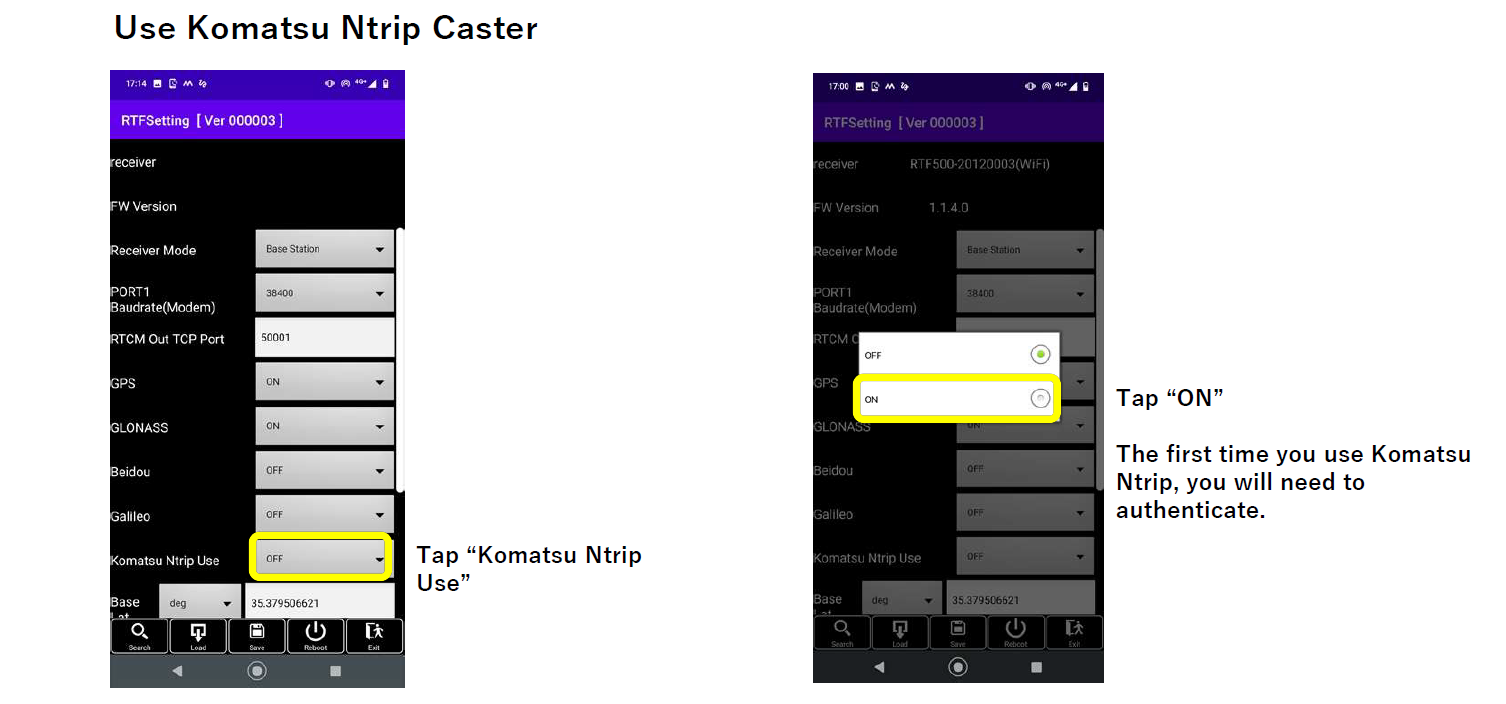

2) Click Komatsu Ntrip Use to " ON"

3) In order to connect to Komatsu Ntrip Caster, you need to Authenticate you account license. ( please contact your DB for the credentials)

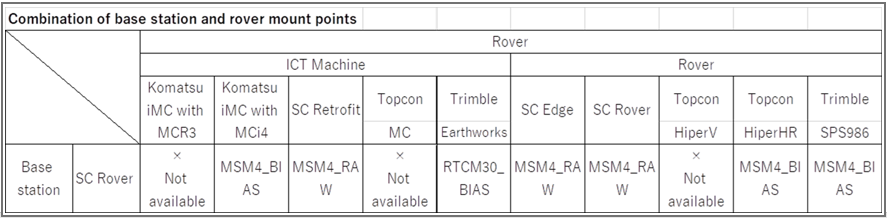

below table , you can find the combination of  base station and rover mount point :

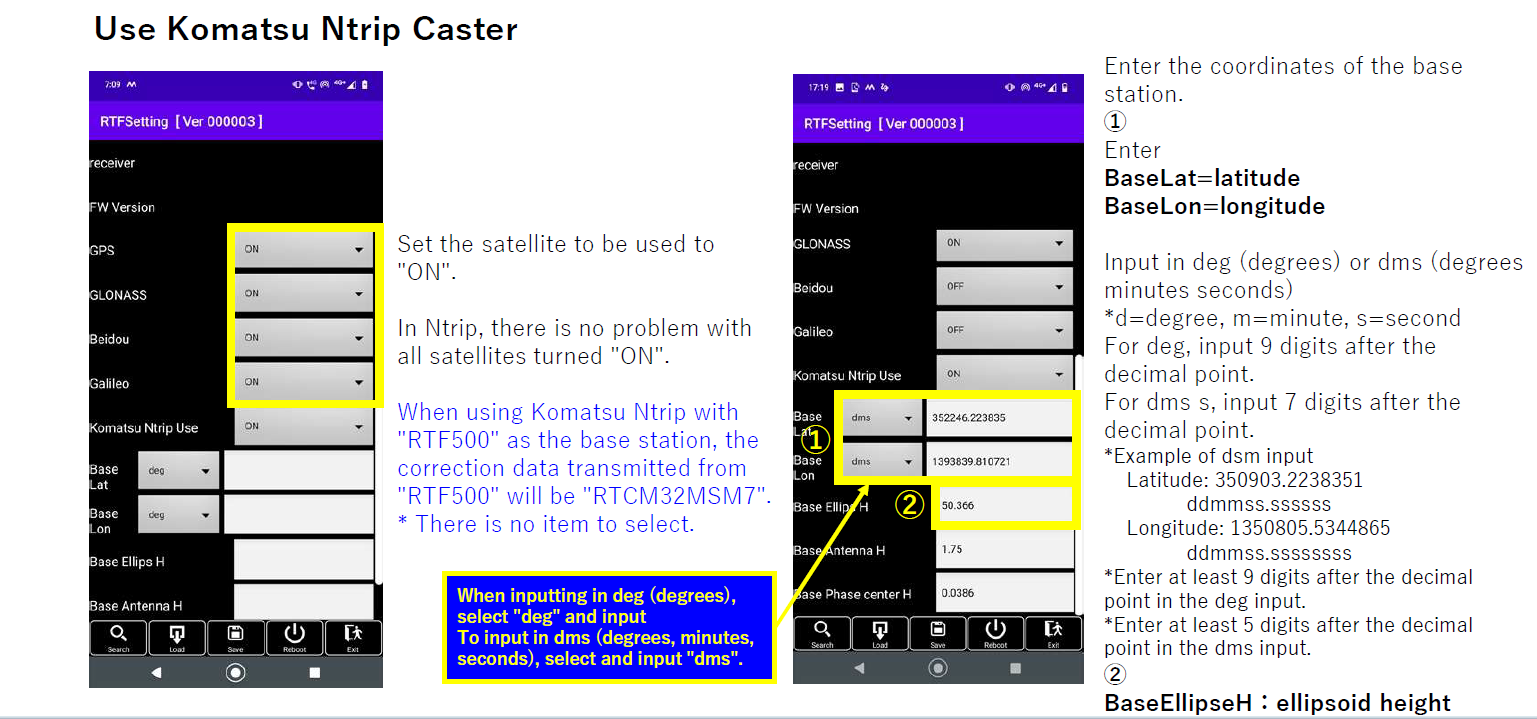

4) you can set the satellites to be used to "ON"   and input base point coordinates  Latitude and Longitude and Ellipsoid height

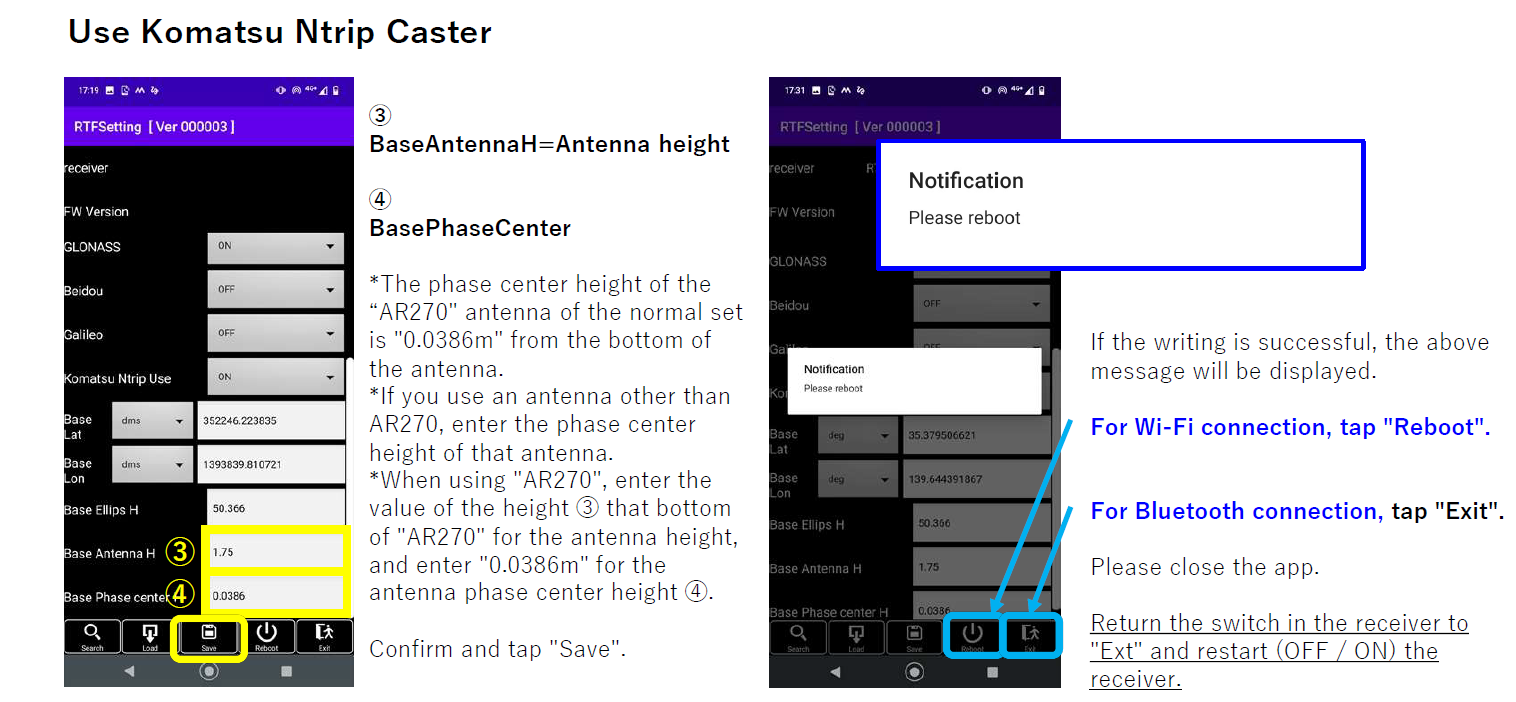

5) Input Antenna height and Phase center ( you can find Phase center measurement at the back of Smart Construction Rover)

6) Finally save and reboot from application.
