What is the normal lamp display of Rover?

Issue

What is the normal lamp display of Rover?

Answer

The normal lamp display of Smart Construction Rover is shown in the list below.

Explanation/How to deal

The normal lamp display of Smart Construction Rover is shown below.

	Normal lamp indication（Photo）	Normal lamp display	Lamp display abnormal/ How to deal

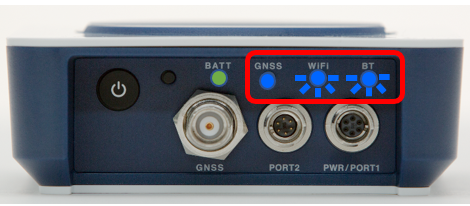

Use as a mobile station		BATT: Red light (low battery) 　　 　Green light (battery used) GNSS : Lighting WiFi : Blinking BT : Blinking	If the GNSS is blinking, the satellite is not being acquired, and the Smart Construction Rover should be moved to a location with a clear view of the sky.
Fixed station (Use the external radio)		BATT: Red light(using external power source)          Green light(using battery) GNSS : Lighting WiFi   : Blinking BT      : Blinking	If the GNSS is blinking, the satellite is not being acquired, and the Smart Construction Rover should be moved to a location with a clear view of the sky.

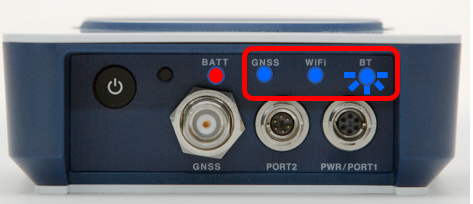

Fixed station (Use the Komatsu Ntrip Caster)		BATT: Red light(using external power source)          Green light (using battery) GNSS : Lighting WiFi   : Lighting BT     : Blinking	If GNSS is blinking, the satellite is not being acquired, move the Smart Construction Rover to a location with a clear view of the sky. If the WiFi is off, no correction data is being sent, check to see if the Komatsu Ntrip Caster license is activated.
